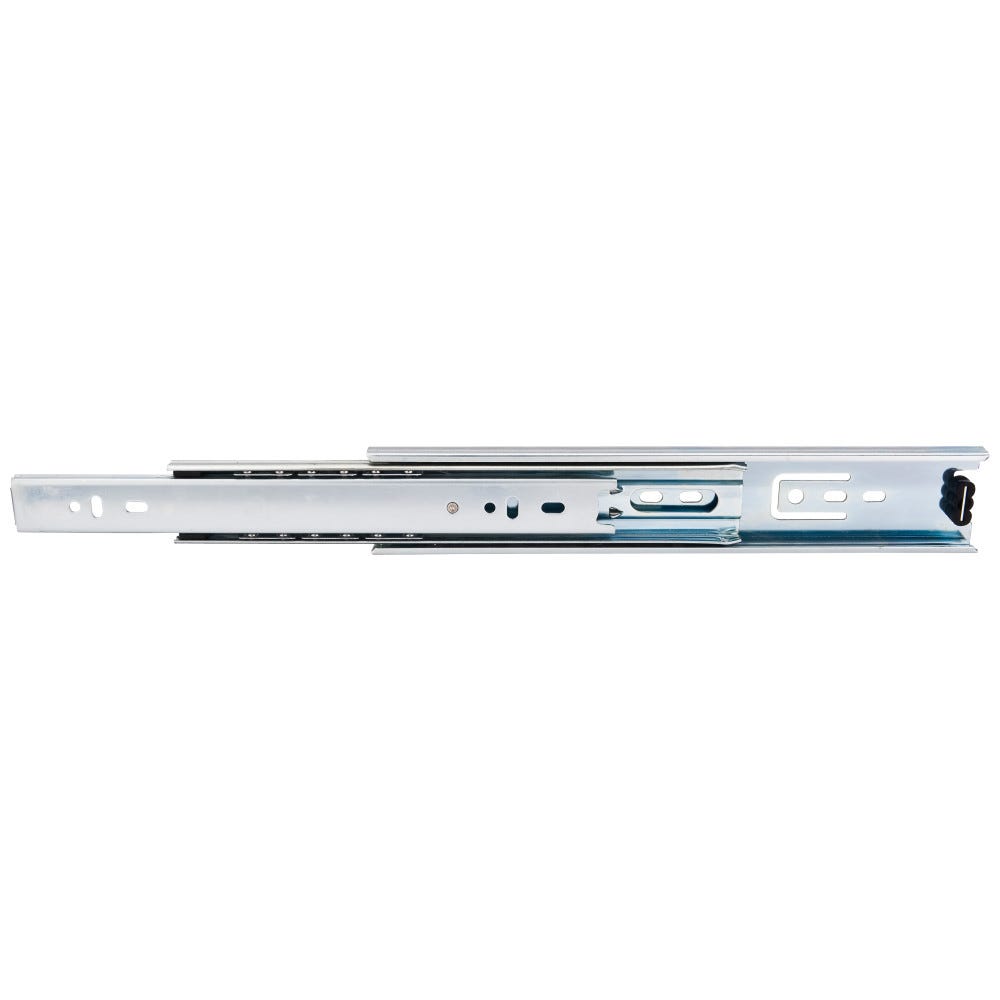

HR MAX™ Heavy Duty 100 lb Full Extension Side Mount Ball Bearing Slides
List Price
$5.87
Stock
In stock
Only %1 left
Part
303FUA
List Price
Description
HR Max = Quality backed by Lifetime warranty Worry free heavy duty ball bearing slide has been the go to slide for over a decade Lubricated steel ball bearings with cage hold forward - retains cage during drawer member installation Synthetic rubber hold-in detent - prevents bounce back and roll out
More Information
| FEATURES |
|---|
| 1/2" side spacing |
| Non-handed trigger disconnect |
| Installation brackets available |
| 45 mm profile height |
| 1.0 mm x 1.0 mm x 1.2 mm cold rolled steel material |
| Clear zinc electroplated finish |
| 6.3 mm Euro screw or #8 x 7/16" truss head screw is recommended |
| NOTES |
|---|
Details
| Item Number | 303FUA |
|---|---|
| ADA | No |
| Certification | ANSI/BHMA A156.9-2010 |
Resources
| Installation Instructions |
| Certifications |
| Warranty |
