Dovetail Drawer Boxes

Dovetail Drawer Boxes

Our drawer boxes, your quality

Made To Order

Customize your dovetail drawer box order with our easy-to-use order form.

Order Now

For linear drawer box material, please go here.

Download Order Form

ORDERING GUIDE

DRAWER BOX TYPES

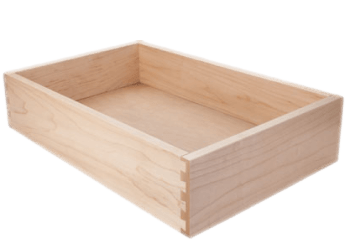

  • Standard Box Standard Box

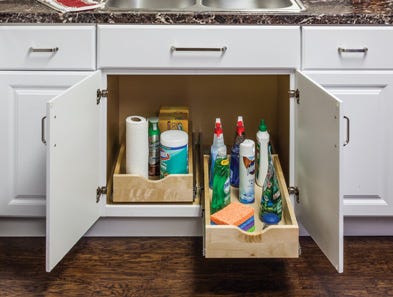

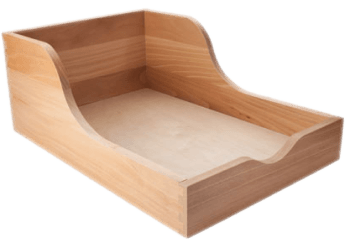

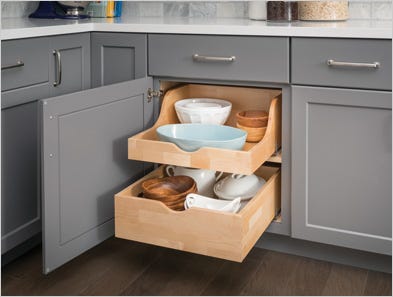

  • High Back Rollout High Back Rollout

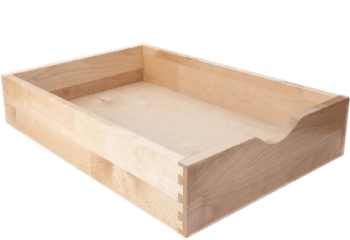

  • Rollout Rollout

DRAWER BOX MATERIALS

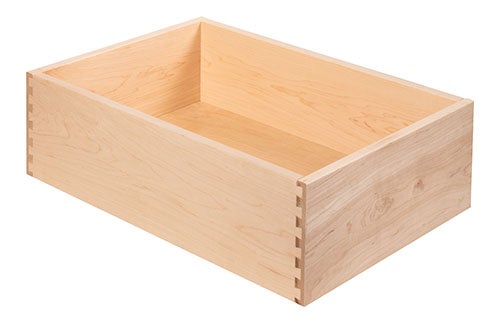

  • Hard Maple Hard Maple

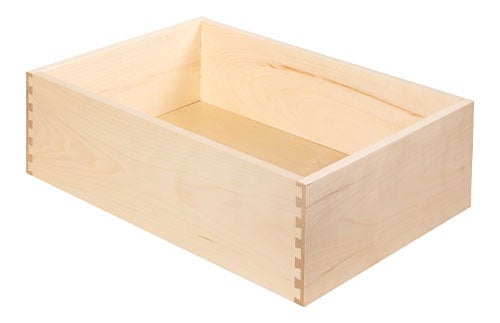

  • Aspen Aspen

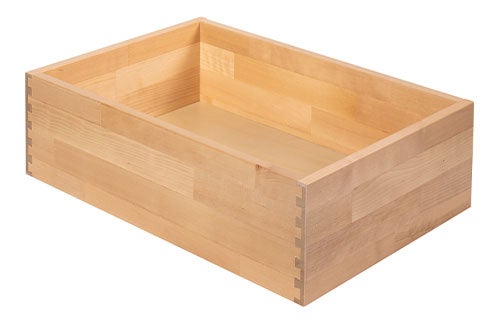

  • White Birch White Birch

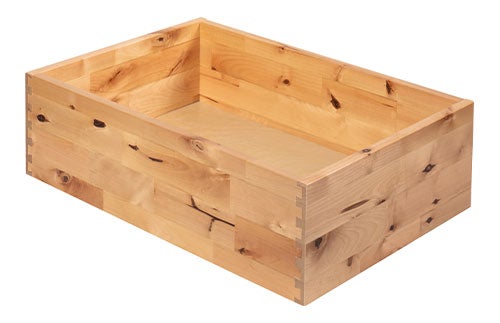

  • Rustic White Birch Rustic White Birch

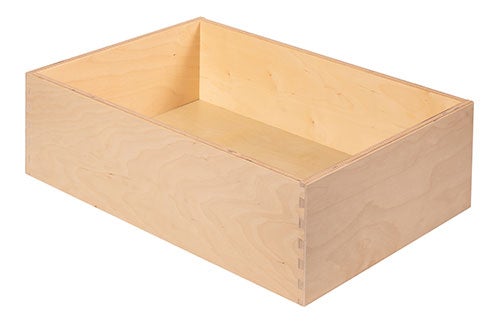

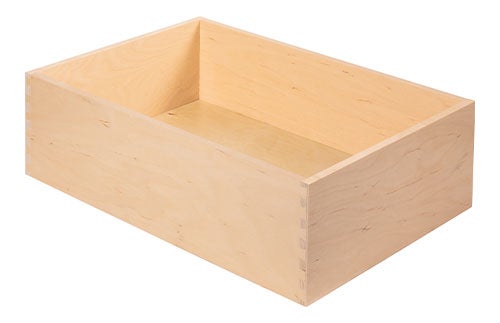

  • Baltic Birch Plywood Baltic Birch Plywood
  • Rubberwood Rubberwood

DRAWER BOX LINEAR MATERIAL

  • Finished Aspen Drawer Box Material Finished Aspen Drawer Box Material
  • White Birch Finger Jointed Drawer Box Material White Birch Finger Jointed Drawer Box Material

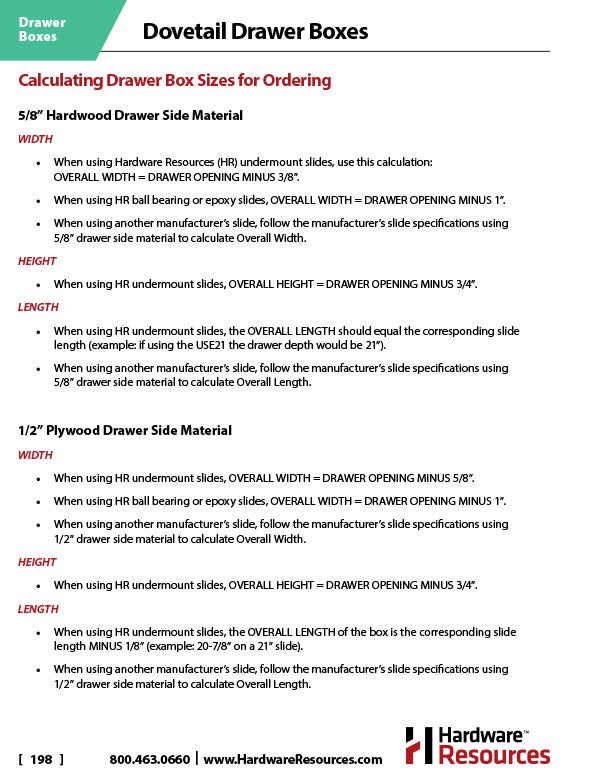

CALCULATING DRAWER BOX SIZES

5/8" Hardwood Drawer Side Material

WIDTH

When using HR USE Series undermount slides, OVERALL WIDTH = DRAWER OPENING MINUS 3/8". When using HR ball bearing or epoxy slides, OVERALL WIDTH = DRAWER OPENING MINUS 1". When using another manufacturer's slide, follow the manufacturer's slide specifications using 5/8" drawer side material to calculate Overall Width.

HEIGHT

When using HR USE Series undermount slides, OVERALL HEIGHT = DRAWER OPENING MINUS 3/4".

LENGTH

When using HR USE Series undermount slides, the OVERALL LENGTH should equal the corresponding slide length (example: if using the USE21, the drawer depth would be 21"). When using another manufacturer's slide, follow the manufacturer's slide specifications using 5/8" drawer side material to calculate Overall Length.

1/2" Plywood Drawer Side Material

WIDTH

When using HR USE Series undermount slides, OVERALL WIDTH = DRAWER OPENING MINUS 5/8". When using HR ball bearing or epoxy slides, OVERALL WIDTH = DRAWER OPENING MINUS 1". When using another manufacturer's slide, follow the manufacturer's slide specifications using 1/2" drawer side material to calculate Overall Width.

HEIGHT

When using HR USE Series undermount slides, OVERALL HEIGHT = DRAWER OPENING MINUS 3/4".

LENGTH

When using HR undermount slides, the OVERALL LENGTH of the box is the corresponding slide length MINUS 1/8" (example: 20-7/8" on a 21" slide). When using another manufacturer's slide, follow the manufacturer's slide specifications using 1/2" drawer side material to calculate Overall Length.

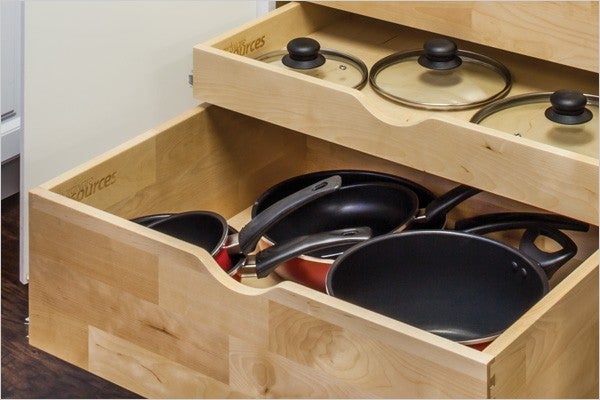

CUSTOM LASER ENGRAVING

Complimentary High Definition Laser Engraving on Hardwood Boxes (upcharge per box for plywood)

Simply provide a high-resolution file of your logo. We’ll do the rest!

Accepted Files

EPS, AI, PDF, PSD, JPEG, TIFF

Maximum Logo Size

1-1/2" tall x 6" long

Box Details

Minimum box height for engraving is 3".
Not available on high-back rollouts or boxes over 24" deep.
Placed on the front left inside edge of the box.
One logo per customer. Logos are kept on file for future orders.

Don't have a logo? Choose from our preselected fonts to customize your company name.
Engraving

RESOURCES & ASSISTANCE

We've put together this list of commonly viewed resources for your convenience.
Resources for a specific product can be found on the product's detail page.


  • Drawer Box Catalog Drawer Box Catalog
  • Material Specifications for Drawer Boxes Material Specifications for Drawer Boxes
  • Calculating Drawer Box Sizes Calculating Drawer Box Sizes
  • Laser Engraving Laser Engraving
  • Warranty Information for Drawer Boxes Warranty Information for Drawer Boxes
