HR MAX™ 225 lb Extra Heavy Duty Full Extension Side Mount Ball Bearing Slides with 1" Overtravel
List Price
$72.84
Stock
In stock
Only %1 left
Part
209FU
List Price
Description
HR Max = Quality backed by Lifetime warranty 1" overtravel slide Grade 1 ANSI/BHMA certified with 225 lb. load rating Synthetic rubber hold-in detent prevents bounce back and roll out Lubricated steel ball bearings
More Information
| FEATURES |
|---|
| 3/4" side spacing |
| Lubricated steel ball bearings |
| Non-handed trigger disconnect release |
| Clear zinc electroplated finish |

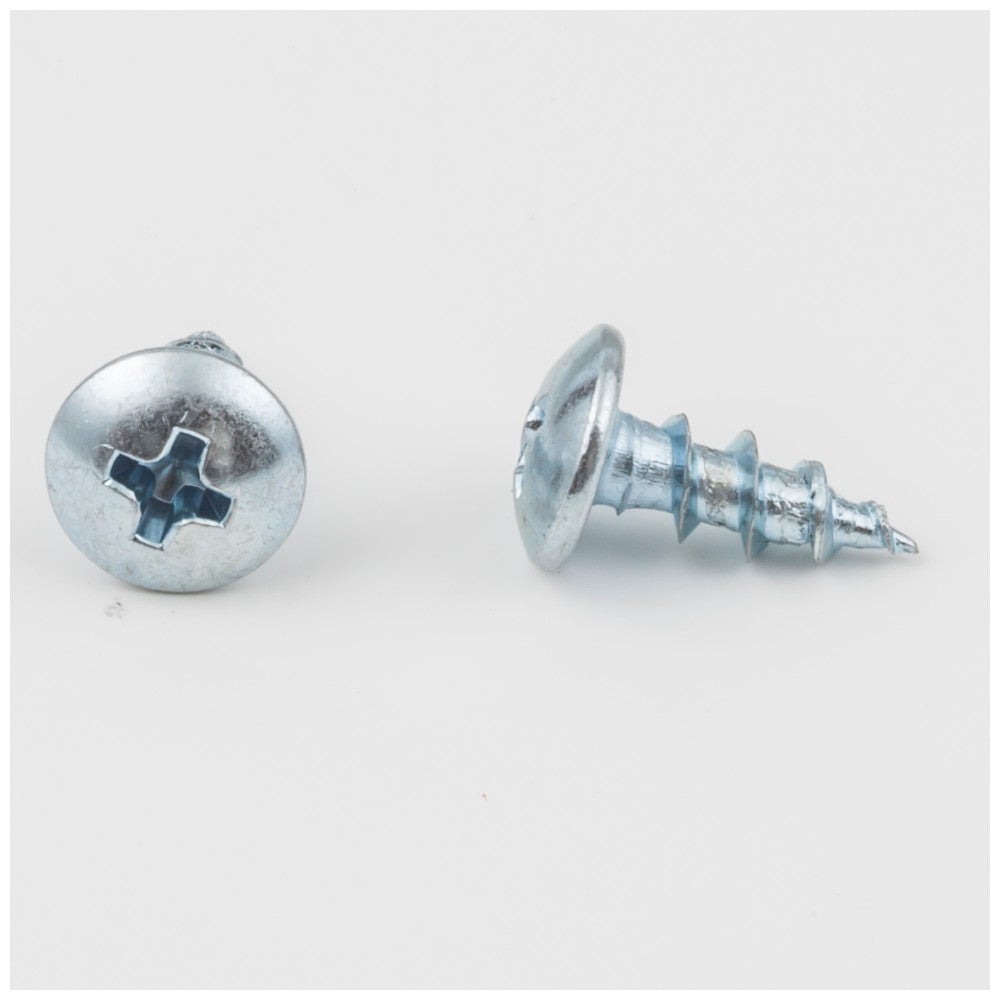

| 6.3 mm euro screw or #8 x 7/16" truss head screw is recommended |
| NOTES | |
|---|---|
| Full Carton Count | 6 |
| Inner Carton Count | 6 |
Details
| Item Number | 209FU |
|---|---|
| Minimum Cabinet Depth | 16 |
| Cabinet Type | Frameless |
| ADA | No |
| Adjustable | Yes |
| Packaging Type | Small Package |
| Load Rating | 225 lb |
| Extension | 1" Overtravel |
| Brand | HR Max |
| Series | 209FU Series |
| Mount Type | Side Mount |
| Height | 54 mm |
| Certification | ANSI/BHMA A156.9-2003 |
| Warranty Period | Limited Lifetime |
