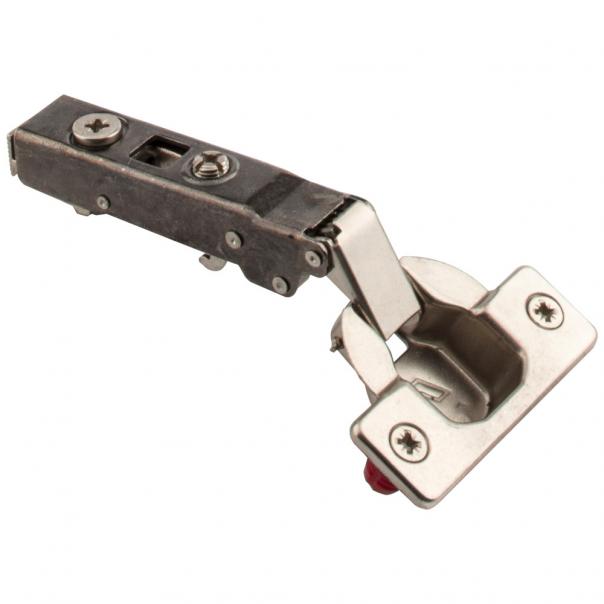

125° Commercial Grade Full Overlay Cam Adjustable Self-close Hinge with Press-in 8 mm Dowels
List Price
$5.40
In Stock
Part
900.0U84.05
List Price
Description
Patented Heavy Duty hinge designed specifically for rugged commercial use Supports framed or frameless applications Grade 2 ANSI/BHMA certified to 2X ANSI 100,000 cycles 0 mm Crank
More Information
| FEATURES |
|---|
| Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications |
| Lever-top available: Provides toolless installation and removal |
| Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play |
| 6-Way adjustability: Horizontal, depth and vertical with plate |
| Cold rolled steel with stylish pewter plating |
| 2 stop action |
| Compatible with 600 Series Plates |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 900.0U84.05 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 125° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | Hardware Resources |
| Series | 900 Series |
| Finish | Dark Nickel |
| Overall Length | 68 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Patent | 8,819,897 B2 |
| Certification | ANSI/BHMA A156.9-2003, ANSI/KCMA A161.1-01 |
| Installation | Press-in 8 mm Dowels |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002532174 |
