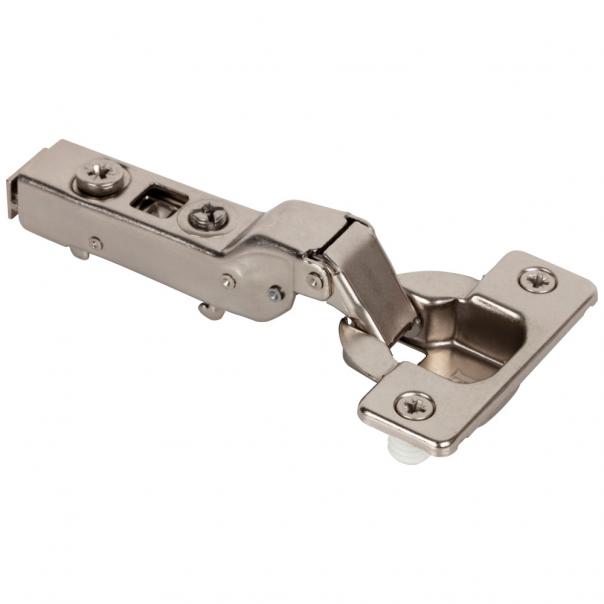

110° Heavy Duty Partial Overlay Cam Adjustable Self-close Hing without Dowels
List Price
$2.22
In Stock
Part
725.0536.25
List Price
Description
Heavy duty spring and patented linkage system Self Close, 2-stop action Hinge and plate provide 6-way adjustability Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles 9 mm Crank
More Information
| FEATURES |
|---|
| Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications |
| Patented anti-sag stacked linkage: Reduces door sag & provides minimal side-to-side play |
| 6-Way adjustability: Horizontal, depth and vertical with plate |
| Cold rolled steel with nickel plating |
| Compatible with 600 Series Plates |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 725.0536.25 |
|---|---|
| Closing | Self-close |
| Cycles | 50,000+ |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Half Cranked |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Degree of Opening | 110° |
| Overlay | Half Overlay |
| Hinge Crank Amount | 9 mm |
| Hinge Dowels | Without |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Brand | HR Max |
| Series | 725 Series |
| Finish | Polished Nickel |
| Overall Length | 68 mm |
| Hinge Cup Diameter | 35 mm |
| Material | Steel |
| Patent | 8,819,897 B2 |
| Certification | ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012 |
| Installation | No Dowels |
| Mount Type | Screw |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002531986 |
