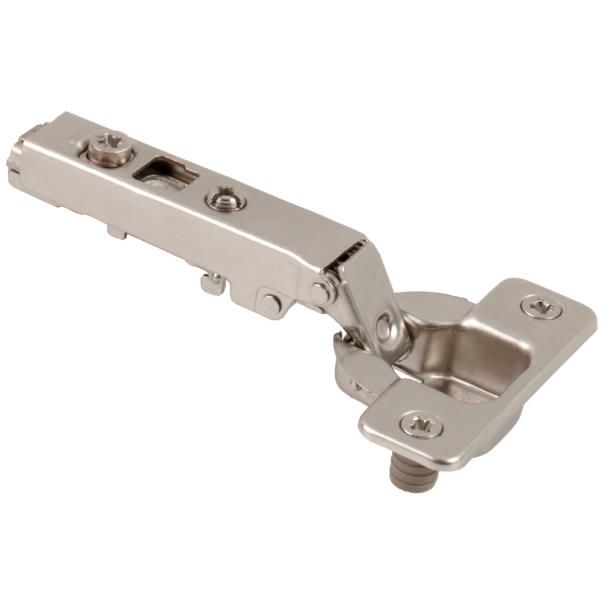

HR MAX™ 90° Standard Duty Full Overlay Cam Adjustable Self-close Hinge with Press-in 8 mm Dowels
List Price
$1.82
In Stock
Part
500.0161.75
List Price
Description
HR Max = Quality backed by Lifetime warranty Standard Duty European Hinge with the performance you need and competitive price point Hinge and plate provide 6-way adjustability Lever-top available: Provides toolless installation and removal Compatible with 400 series mounting plates 0 mm Crank
More Information
| FEATURES |
|---|
| Lever-top available: Provides toolless installation and removal |
| 6-Way adjustability: Horizontal, depth and vertical with plate |
| Compatible with 400 Series plates |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 500.0161.75 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Arm Type | Straight Arm |
| Hinge Type | European |
| Mount Centers | 45 mm |
| Cabinet Type | Faceframe or Frameless |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 90° |
| Overlay | Full Overlay |
| Hinge Crank Amount | 0 mm |
| Overlay Adjustment | +2 mm, -2 mm |
| Depth Adjustment | +3 mm, -2 mm |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 500 Series |
| Finish | Polished Nickel |
| Overall Length | 67 mm |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Press-in |
| Material | Steel |
| Certification | ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012 |
| Installation | Press-in 8 mm Dowels |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002530910 |
