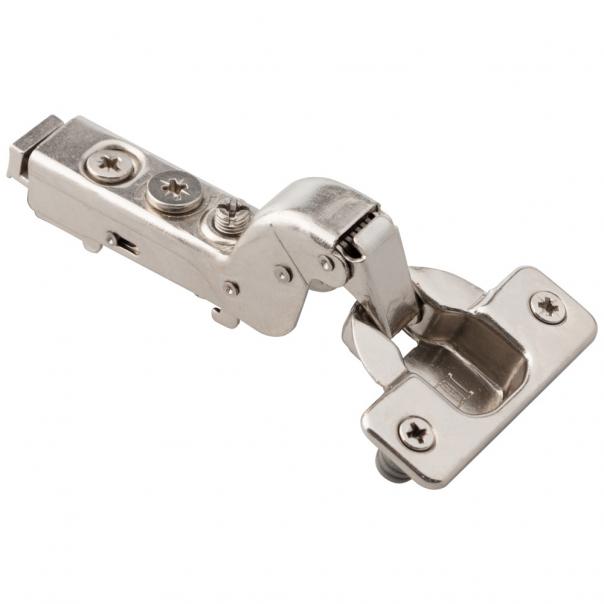

110° 15 mm Crank Cam Adjustable Heavy Duty Adjustable Soft-close Hinge with Press-in 8 mm Dowels

List Price $5.08
In Stock
Part
1750.0280.25
List Price
Description
  • Patented integrated soft-close European hinge with the ability to fine tune closing speed based on the size and weight of the door
  • Heavy duty spring and linkage system
  • Grade 2 ANSI/BHMA certified to ANSI 100,000 cycles
  • 15 mm Crank
  • More Information

    Features
    FEATURES
    Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications
    Hinge and plate provide 6-way adjustability
    Cold rolled steel with nickel plating
    45 mm boring pattern
    2-stop action
    Compatible with 600 Series Plates
    Notes
    NOTES
    Full Carton Count 200
    Inner Carton Count 200

    Details

    Details
    Item Number 1750.0280.25
    Closing Soft-close
    Cycles 100,000+
    Hinge Cup Bore Depth 11.2 mm
    Arm Type Full Cranked
    Hinge Type European
    Mount Centers 45 mm
    Type Faceframe or Frameless
    Pivot Type Dual
    ADA No
    Degree of Opening 110°
    Overlay Inset
    Hinge Crank Amount 15 mm
    Hinge Dowels Press-in
    Overlay Adjustment +2 mm, -2 mm
    Depth Adjustment +3 mm, -2 mm
    Adjustment Type Cam
    Brand Hardware Resources
    Series 1750 Series
    Finish Polished Nickel
    Overall Length 72 mm
    Hinge Cup Diameter 35 mm
    Material Steel
    Patent US 9,169,681 B2, US 9,617,773 B2, US 10,081,975 B2
    Installation Press-in 8 mm Dowels
    Mount Type Press-in
    Warranty Period Limited Lifetime
    UPC Code 840002552875
