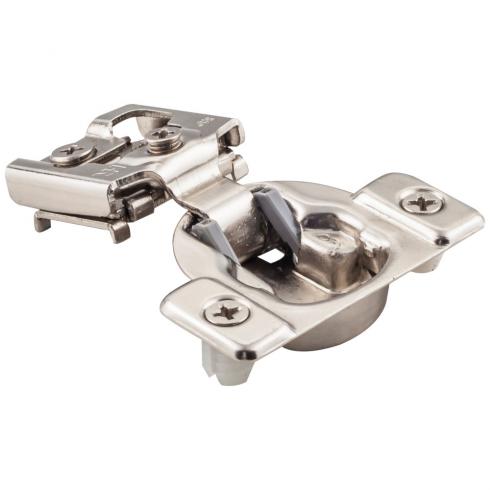

105° 5/8" Overlay DURA-CLOSE® Self-close Compact Hinge with Press-in 8 mm Dowels
List Price
$2.53
In Stock
Part
6390-058
List Price
Description
Patent pending spring sleeves reduce friction and wear One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment For face frame applications Single pivot point 6-way adjustability Compatible with 7390 Series self-close hinges
More Information
| FEATURES |
|---|
| Heavy duty: ideal for larger doors, heavy usage, as well as standard residential applications |
| Cold rolled steel with nickel plating |
| 45 mm boring pattern |
| Compatible with 7390 Series soft-close hinges |
| #7 x 5/8” pan washer head screw (7X0580WCQ) recommended |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 6390-058 |
|---|---|
| Closing | Self-close |
| Hinge Cup Bore Depth | 11.2 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #7 x 5/8” pan washer head screw (7X0580WCQ) |
| Type | Faceframe |
| Pivot Type | Single |
| ADA | No |
| Degree of Opening | 105° |
| Overlay | 5/8" |
| Hinge Dowels | Press-in |
| Overlay Adjustment | +2 mm, -2 mm |
| Adjustment Type | Cam |
| Brand | Hardware Resources |
| Series | 6390 Series |
| Finish | Polished Nickel |
| Hinge Cup Diameter | 35 mm |
| Material | Steel |
| Patent | 10,030,427 |
| Certification | ANSI/BHMA A156.9-2010, ANSI/KCMA A161.1-2012 |
| Installation | Screw |
| Mount Type | Press-in |
| Warranty Period | Limited Lifetime |
| UPC Code | 840002531498 |
