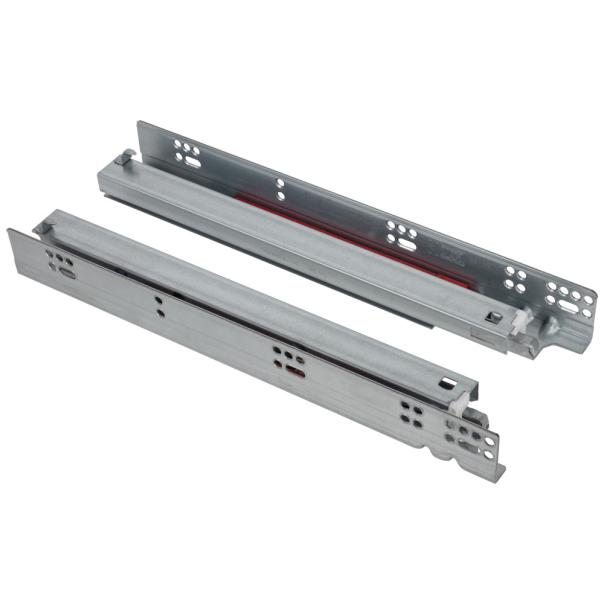

HR MAX™ Performance 120 lb Soft-Close EZ Open Full Extension Undermount Slides

List Price $21.99
Stock In stock
Only %1 left
Part
USMAX2
List Price
Description
The next generation HR MAX™ Performance Series undermount slides use our best-in-class attachment clips that feature superior adjustability, strong slide-clip engagement, and easier installation with an angled attachment point that keeps the clips perfectly aligned. The Performance Series slides exceed ANSI/BHMA standards with 120 lbs. dynamic rating at 50,000 cycles for lasting performance year after year. HR Max undermount slides are engineered for smoother and quieter operation than the previous generation and feature a lower pull force for easier opening. HR Max undermount slides are compatible with both face frame and frameless applications and feature a wide range of adjustments for perfect alignment and smooth operation.

When you choose HR Max, you're choosing more than just hardware; you're choosing a brand that cares about your cabinet business. Trust in the brand that's built to last, backed by a lifetime warranty, supported by knowledgeable sales and support staff, and provided by a company that is Built Around You.

More Information

Features
FEATURES
Best-in-class attachment clips available in 6-way metal, 4-way metal, 4-way plastic, and narrow options (sold separately)
Exceeds ANSI/BHMA standards with 120 lbs. dynamic rating to 50,000 cycles
Reduced pull force for easy opening
Recommended screw: #7 x 5/8"
Slotted mounting holes provide wide range of adjustments for perfect alignment
Screw holes for bottom mounting
Easy rear bracket installation with our HR-TOOL-RBINST (sold separately)
Rear brackets sold separately
Notes
NOTES

Details

Details
Item Number USMAX2
ADA No
Adjustable No
Extension Full Extension
Sold By Pair
Brand HR Max
Series USMAX2
Center to Center ? The distance between the center of one screw hole to the center of the other screw hole. 3/8"
Mount Type Undermount
Height 1-13/16"
Width 2-1/8"
Certification ANSI/BHMA A156.9-20, ANSI/KCMA A161.1-22
Warranty Period Limited Lifetime
