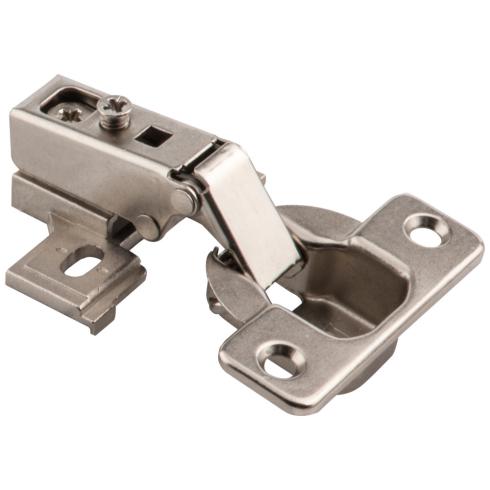

HR MAX™ 125° 1/2" Overlay Cam Adjustable Self-Close Face Frame Hinge without Dowels
List Price
$2.17
In Stock
Part
22855-8-000N-2
List Price
Description
HR Max = Quality backed by Lifetime warranty 125° Robust die cast face frame plate securely grasps the frame and provides two attachment points
One piece 6-way adjustable compact assembly with vertical screw adjustment and horizontal and depth cam adjustment
Patented dual pivot point
Grade 2 ANSI/BHMA certified to ANSI 50,000 cycles
More Information
| FEATURES |
|---|
| Dual Pivot Point brings the door closer to the cabinet reducing door gap. |
| #6 x 5/8" pan washer head screw (6X258017Q) recommended |
| One piece compact assembly with vertical screw adjustment and horizontal and depth cam adjustment |
| NOTES | |
|---|---|
| Full Carton Count | 200 |
| Inner Carton Count | 200 |
Details
| Item Number | 22855-8-000N-2 |
|---|---|
| Cycles | 50,000+ |
| Hinge Cup Bore Depth | 12.5 mm |
| Hinge Type | Compact |
| Mount Centers | 45 mm |
| Recommended Screws | #8 x 5/8" pan washer head screw (8X058017WCQ-B) |
| Cabinet Type | Faceframe |
| Pivot Type | Dual |
| ADA | No |
| Packaging Type | Small Package |
| Degree of Opening | 125° |
| Overlay | 1/2" |
| Adjustment Type | Cam |
| Sold By | Each |
| Brand | HR Max |
| Series | 22855 |
| Finish | Zinc |
| Mount Type | Screw |
| Hinge Cup Diameter | 35 mm |
| Hinge Dowels | Without (no dowels) |
| Material | Steel |
| Patent | 7594300 |
| Certification | Grade 2 ANSI/BHMA Certified to ANSI 50,000 Cycles |
| Installation | Screw |
| Warranty Period | Limited Lifetime |
| UPC Code | 843512077791 |
